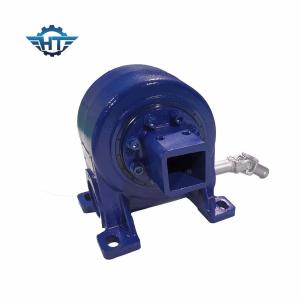

Long Life High Precision Small Size Worm Gear Slew Drive For PV Trackers

  • 1
  • 2

Brand Name : HangTuo

Model Number : VE7"

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 piece

Price : USD 100~1600/ pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 15~45 days

Packaging Details : plywood box

Material : QT

Application : PV Trackers

Model : 1 inch to 25 inches

Gear Ratio : 31:1~150:1

Efficiency : 40%

Precision : ≤ 0.15°

Driver : Electric Motor

Color : As Requested

Contact Now

Long Life High Precision Small Size Worm Gear Slew Drive For PV Trackers

Worm Gear Slew Drive Description

Our worm drive has a unique advantage in tracking sun. It enables your solar tracking system to follow the sun all the time from sunrise to sunset. They can be also applied in combination of horizontally and vertically mounted slew drives. They have small backlash and medium torque. They are a perfect choice for small applications.

VE Model Performance Parameters

VE Model Performance Parameters
Model Rated Output Torque (N.m) Holding Torque (kN.m) Tilting Torque (kN.m) Axial Load (kN) Radial Load (kN) Ratio Efficiency

Precision

(Degree)

 IP Working Tep(℃) Self-locking Weight(kg)
3" 806 9 5 22 15 31:1 40% ≤0.15 66 -40～+80 Yes 12kg
5" 962 30 6 16 27 37:1 40% ≤0.15 66 -40～+80 Yes 18kg
7" 7344 60 10 34 58 51:1 40% ≤0.15 66 -40～+80 Yes 32kg
8" 8000 70 14 50 80 50:1 40% ≤0.15 66 -40～+80 Yes 28kg
9" 8784 80 16 60 130 61:1 40% ≤0.15 66 -40～+80 Yes 52kg
12" 11232 100 25 77 190 78:1 40% ≤0.15 66 -40～+80 Yes 65kg
14" 12240 120 48 110 230 85:1 40% ≤0.15 66 -40～+80 Yes 88 kg
17" 14688 136 67 142 390 102:1 40% ≤0.15 66 -40～+80 Yes 135 kg
21" 18000 140 89 337 640 125:1 40% ≤0.15 66 -40～+80 Yes 192 kg
25" 21600 150 112 476 950 150:1 40% ≤0.15 66 -40～+80 Yes 251 kg

Advantages

Slewing drive is widely applied in modular trailers, all types of cranes, aerial working platform, solar tracking systems and wind power systems. Electric and planetary gearboxes can be designed according to customer's requirment. Slewing drive has the advantage for saving space in facilities, max load capacity in a compact design, extensive lifespan, reduced maintenance costs.

Our Services

1. 24 hours online technical support

2. OEM available

3. Free custermized logo
