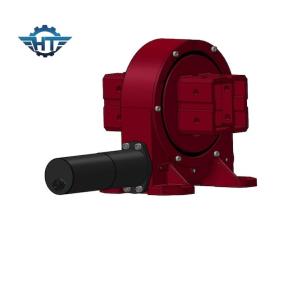

9 Inches Vertical Slewing Drive Worm Drive Slew Ring For Open Field Solar Trackers
Single Axis Slewing Drive Description
Radial load: Load vertical to the axis of slewing bearing
Axial load: Load parallel to the axis of slewing bearing
Holding torque:It is the reverse torque.When the drive is rotating reversely, and parts are not
damaged,The maximum torque achieved is called holding torque.
Self-locking: Only when loaded, the slewing drive is not able to reverse rotate and thus called selflocking.
VE Model Performance Parameters
| VE Model Performance Parameters |
| Model |
Rated Output Torque (N.m) |
Holding Torque (kN.m) |
Tilting Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio |
Efficiency |
Precision
(Degree)
|
IP |
Working Tep(℃) |
Self-locking |
Weight(kg) |
| 3" |
806 |
9 |
5 |
22 |
15 |
31:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
12kg |
| 5" |
962 |
30 |
6 |
16 |
27 |
37:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
18kg |
| 7" |
7344 |
60 |
10 |
34 |
58 |
51:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
32kg |
| 8" |
8000 |
70 |
14 |
50 |
80 |
50:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
28kg |
| 9" |
8784 |
80 |
16 |
60 |
130 |
61:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
52kg |
| 12" |
11232 |
100 |
25 |
77 |
190 |
78:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
65kg |
| 14" |
12240 |
120 |
48 |
110 |
230 |
85:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
88 kg |
| 17" |
14688 |
136 |
67 |
142 |
390 |
102:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
135 kg |
| 21" |
18000 |
140 |
89 |
337 |
640 |
125:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
192 kg |
| 25" |
21600 |
150 |
112 |
476 |
950 |
150:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
251 kg |
Single Axis Slewing Drive Features
Single axis slewing drive is a reduction transmission mechanism integrated with a driving power source. The rotation can be in a single axis, or in multiple axes together. It is a general-purpose reduction transmission mechanism that integrates the functions of rotation, deceleration, and having a simple structure and convenient manufacture and maintenance at the same time.
Single Axis Slewing Drive Applications
Flat single axis tracking system
The flat single-axis tracking system is the most widely used tracking system on the market, which can be subdivided into the NS-axis flat single-axis tracking system (that is, the rotation axis is installed in the north-south direction) and the EW-axis flat single-axis tracking system (ie the rotation axis). installed in the east-west direction). Among them, the NS-axis flat single-axis tracking system is the most widely used.
For the NS-axis horizontal single-axis tracking system, in order to adapt to areas with higher latitudes, a flat single-axis tracking system with an inclination angle has been developed.
