SDE Model Dual Axis Small Slew Drive With Brushed Motor For PV Tracking System

  • 1
  • 2

Brand Name : HangTuo

Model Number : SDE7"

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 piece

Price : USD 398~456/ pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 15~45 days

Packaging Details : plywood box

Material : 50Mn, 42CrMo

Model : SDE7"

Gear Ratio : 57:1

Rated Output Torque : 2000 Nm

Holding Torque : 13500 Nm

Tilting Torque : 13200 Nm

Efficiency : 40%

Standard Color : RAL 9006

Contact Now

SDE Series Dual Axis Small Slew Drive With Brushed Motor For PV Tracking System

Dual Axis Small Slew Drive​ Description

History of Tower Photothermal

The design concept of the tower solar thermal power generation system was proposed by the former Soviet Union in the 1950s. In 1950, the former Soviet Union designed the world's first small tower-type solar thermal power station, and carried out extensive and fundamental exploration and research on solar thermal power generation technology. According to incomplete statistics, there were more than 20 megawatt-scale solar thermal power experimental power stations built in the world from 1981 to 1991, the main form of which is the tower power station, with a maximum power generation of 80 MW. In July 2013, China's Qinghai Zhongkong Delingha 50MW tower solar thermal power station-Phase I-10MW project was successfully integrated into Qinghai Power Grid, indicating that China's self-developed solar thermal power generation technology has taken solid steps toward commercial operation.

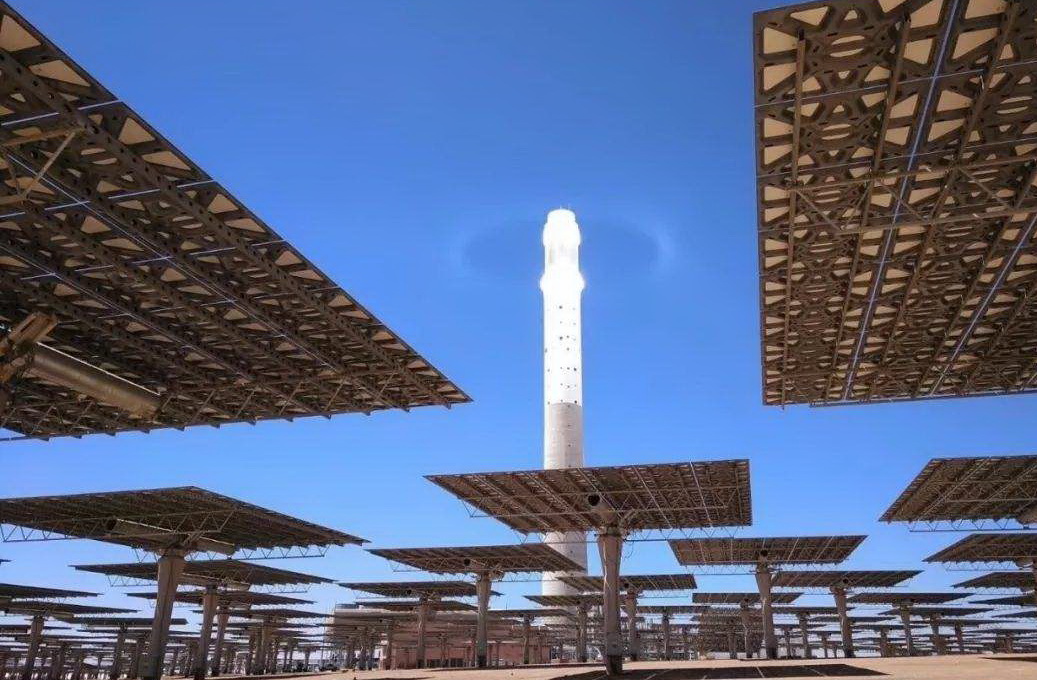

SDE Model Slew Drives Applied In Tower CSP

SDE Model Performance Parameters
Model Rated Output Torque (N.m)

Tilting Torque

(kN.m)

 Holding Torque (kN.m) Axial Load (kN) Radial Load (kN) Ratio Efficiency

Precision

(degree)

 IP

Working Tep

(℃)

 Self-locking Weight (kg)
3" 600 1.5 5.8 10 15 31:1 40% ≤0.15 66 -40～+80 Yes 25kg
5" 800 6 9.2 16 27 37:1 40% ≤0.15 66 -40～+80 Yes 34kg
7" 2000 7.5 13.2 34 58 57:1 40% ≤0.15 66 -40～+80 Yes 56kg
9" 4300 16 27.2 60 130 61:1 40% ≤0.15 66 -40～+80 Yes 92kg
12" 5800 25 41 77 190 78:1 40% ≤0.15 66 -40～+80 Yes 160kg
14" 6750 48 45 110 230 85:1 40% ≤0.15 66 -40～+80 Yes 224kg
17" 9460 67 54 142 390 102:1 40% ≤0.15 66 -40～+80 Yes 320kg
21" 16000 89 65 337 640 125:1 40% ≤0.15 66 -40～+80 Yes 492kg
25" 21450 112 89 476 950 150:1 40% ≤0.15 66 -40～+80 Yes 705kg

Features

1. High backholding torque to improve the solar tracking system's safety

2. Enveloping worm drive inside

3. Multi tooth contact to ensure high load

4. Self-locking function

Applicatons

CSP-tower/heliostat power station

SDE Model Dual Axis Small Slew Drive With Brushed Motor For PV Tracking System

Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.


Product Tags:

SDE Dual Axis Small Slew Drive



PV Tracking Dual Axis Slew Drive



Dual Axis Slew Drive 2000 Nm
